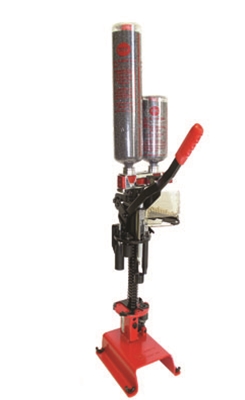

SIZEMASTER PARTS
.gif) |
.gif) |
Shop Products

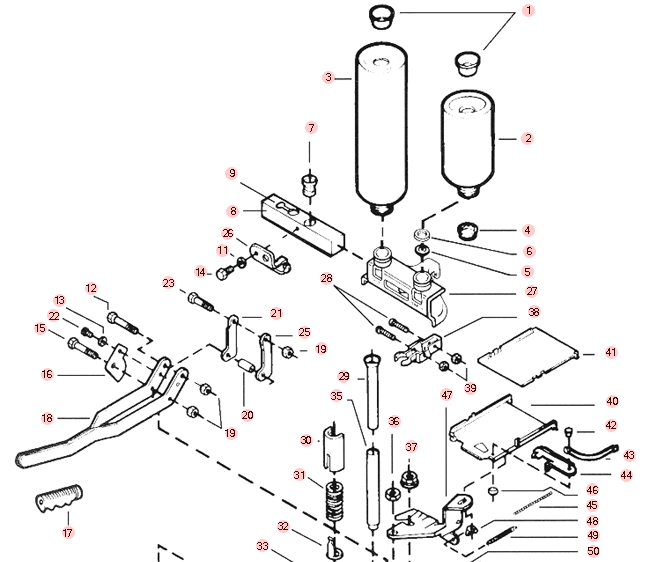

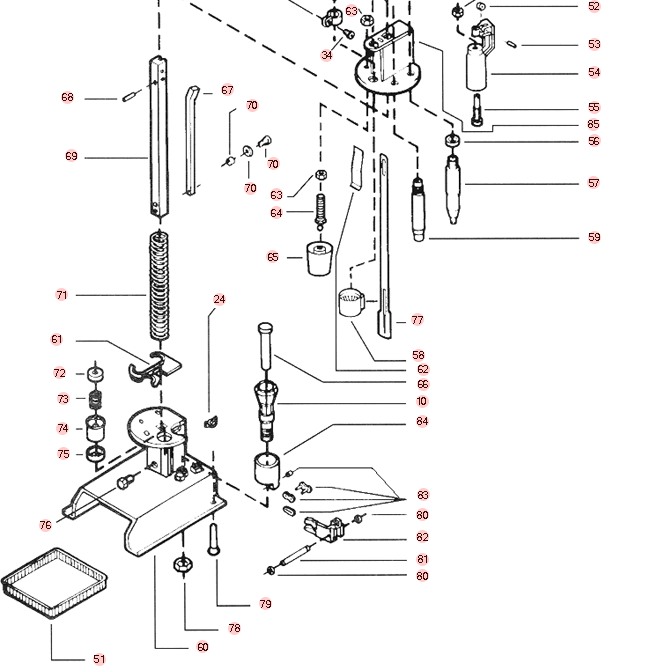

| Article | Code | Price | Stock | ||
|---|---|---|---|---|---|
| 1 | Cap Plug | 10013X | £1.06 | No | |
| 2 | Small Container With Cap | 100301L13X | £16.50 | Yes | |
| 3 | Shot Container (12 inch) | 1008042 | £19.44 | Yes | |
| 4 | Bottle Cap | 100304C | £1.62 | Yes | |
| 5 | Brass Washer (1 Per Pack) | 100304W | £5.00 | Yes | |
| 6 | Grommet (1 Per Pack) | 100304G | £4.80 | Yes | |
| 9 | Charge Bar Rubber Insert | 1008440 | £3.12 | Yes | |
| 10 | Collet - 10 Gauge | 100808010 | £42.00 | Yes | |
| 10 | Collet - 12 Gauge | 100808012 | £62.70 | Yes | |
| 10 | Collet - 16 Gauge | 100808016 | £62.70 | Yes | |
| 10 | Collet - 20 Gauge | 100808020 | £62.70 | Yes | |
| 10 | Collet - 28 Gauge | 100808028 | £62.70 | Yes | |
| 10 | Collet - 410 Bore | 1008080410 | £62.70 | Yes | |
| 11 | Lock Washer | HDW751W | £1.21 | Yes | |
| 12 | Handle Bolt | HDW610C | £1.58 | Yes | |
| 13 | Washer | HDW623C | £1.66 | Yes | |
| 14 | Bolt | HDW685F | £1.66 | Yes | |
| 15 | Handle Bolt | HDW609B | £2.64 | No | |
| 16 | Crimp Die Cam | 100723 | £4.78 | Yes | |
| 17 | Handle Grip | 100709C | £3.83 | Yes | |
| 18 | Handle Assembly | 100709CA | £24.02 | No | |
| 19 | Stop Nut (14 / 20) | HDW309E | £1.03 | No | |
| 20 | Link Spacer | 100510B | £1.03 | Yes | |
| 21 | Links Kit (L & R Hand) | 100610 | £14.24 | Yes | |
| 22 | Self Tapping Screw | HDW8324 | £2.98 | No | |
| 23 | Link Bolt | HDW610A | £1.66 | Yes | |
| 24 | Wing Nut | HDW713D | £1.66 | Yes | |
| 25 | Links Kit (L & R Hand) | 100610 | £14.24 | Yes | |
| 26 | MEC Pro Check (inc bolt and washer) | 751E | £10.50 | Yes | |
| 27 | Measure Only | 1008098CA | £22.50 | No | |
| 28 | Measure Pivot Screw | HDW304D | £1.00 | Yes | |
| 29 | Drop Tube (10, 12, 16 Gauge) | 100205 | £2.40 | Yes | |
| 29 | Drop Tube (20, 28, 410) | 10020528 | £2.40 | Yes | |
| 30 | Pressure Indicator Face | 100306F | £4.95 | No | |
| 31 | Pressure Spring | 100306T | £4.91 | Yes | |
| 32 | Pointer | 100306P | £3.83 | No | |
| 33 | Adjusting Clamp | 100507 | £3.83 | Yes | |
| 34 | Adjusting Clamp Screw | HDW507A | £3.83 | Yes | |
| 35 | Rammer Tube (10 Gauge) | 100705B10 | £13.50 | No | |
| 35 | Rammer Tube - 12 Gauge | 100505B12 | £16.50 | Yes | |
| 35 | Rammer Tube - 16 Gauge | 100505B16 | £16.50 | Yes | |
| 35 | Rammer Tube - 20 Gauge | 100505B20 | £16.50 | Yes | |
| 35 | Rammer Tube - 28 Gauge | 100505B28 | £16.50 | Yes | |
| 35 | Rammer Tube - 410 Bore | 100505BF410 | £18.60 | Yes | |
| 36 | Lock Nut | HDW459A | £1.21 | No | |
| 37 | Lock Nut | HDW8099 | £1.49 | No | |
| 38 | Measure Mounting Bracket | 100704C | £9.21 | Yes | |
| 39 | Nut | HDW304J | £1.98 | Yes | |
| 40 | Primer Tray Assembly | 100285A3 | £41.37 | Yes | |
| 41 | Primer Tray Cover | 100285ML | £7.32 | Yes | |
| 42 | Rivet | 100314A | £1.56 | No | |
| 43 | Primer Feed Spring | 100285P | £4.08 | Yes | |
| 44 | Pick-Up Arm | 100285G | £9.48 | Yes | |
| 45 | Chain | 100285R | £3.27 | Yes | |
| 46 | Retaining Ring | 100285H | £1.56 | Yes | |
| 47 | Pivot Bracket Assembly | 100285A4 | £22.04 | Yes | |
| 48 | Wing Nut | HDW304F | £0.99 | Yes | |
| 49 | Spring | 100285Q | £2.43 | Yes | |
| 50 | Lock Nut | HDW461A | £1.00 | No | |
| 51 | Primer Catcher | 1008067 | £6.12 | Yes | |
| 52 | Cam Roller Zytel Die | 1008312 | £1.61 | No | |
| 52 | Cam Roller (28 Gauge) | 1008699 | £1.01 | No | |
| 53 | Cam Roller Pin | 100613D | £0.87 | Yes | |
| 54 | Cam Crimp Assembly - 10 Gauge | 100721CA10 | £19.44 | Yes | |
| 54 | Cam Crimp Assembly - 12 Gauge | 100721CA12 | £19.44 | Yes | |
| 54 | Cam Crimp Die Assembly - 16 Gauge | 100721CA16 | £19.44 | Yes | |
| 54 | Cam Crimp Assembly - 20 Gauge | 100721CA20 | £19.44 | Yes | |
| 54 | Cam Crimp Assembly - 28 Gauge | 100721CA28 | £19.44 | Yes | |
| 54 | Cam Crimp Assembly - 410 Bore | 100721CA410 | £19.44 | Yes | |
| 55 | Cam Crimp Punch - 10 Gauge | 100721B10 | £11.40 | Yes | |
| 55 | Cam Crimp Punch - 12 Gauge | 100721B12 | £11.40 | Yes | |
| 55 | Cam Crimp Punch - 16 Gauge | 100721B16 | £11.40 | Yes | |
| 55 | Cam Crimp Punch - 20 Gauge | 100721B20 | £11.40 | Yes | |
| 55 | Cam Crimp Punch - 28 Gauge | 100721B28 | £11.40 | Yes | |
| 55 | Cam Crimp Punch - 410 Bore | 100721B410 | £11.40 | Yes | |
| 56 | Deprime Spacer (3in) | 1008126 | £2.53 | No | |
| 57 | Deprime Punch - 10 Gauge | 100810710 | £15.63 | Yes | |
| 57 | Deprime Punch - 12 Gauge | 100810712 | £19.62 | Yes | |
| 57 | Deprime Punch - 16 Gauge | 100810716 | £19.62 | Yes | |
| 57 | Deprime Punch - 20 Gauge | 100810720 | £19.62 | Yes | |
| 57 | Deprime Punch - 28 Gauge | 100810728 | £19.62 | Yes | |
| 57 | Deprime Punch - 410 Bore | 1008107410 | £19.62 | Yes | |
| 58 | Wad Guide Fingers - 10 Gauge | 100830010 | £7.50 | Yes | |
| 58 | Wad Guide Fingers - 12 Gauge | 100830012 | £7.50 | Yes | |
| 58 | Wad Guide Fingers - 16 Gauge | 100830016 | £7.50 | Yes | |
| 58 | Wad Guide Fingers - 20 Gauge | 100830020 | £7.50 | Yes | |
| 58 | Wad Guide Fingers - 28 Gauge | 100830028 | £7.50 | Yes | |
| 58 | Wad Guide Fingers - 410 Bore | 1008300410 | £7.50 | Yes | |
| 59 | Reprime Punch - 10 Gauge | 10028610 | £14.07 | Yes | |
| 59 | Reprime Punch - 12 Gauge | 10028612 | £14.07 | Yes | |
| 59 | Reprime Punch - 16 Gauge | 10028616 | £14.07 | Yes | |
| 59 | Reprime Punch - 20 Gauge | 10028620 | £14.07 | Yes | |
| 59 | Reprime Punch - 28 Gauge | 10028628 | £14.92 | Yes | |
| 59 | Reprime Punch - 410 Bore | 100720410 | £16.38 | Yes | |
| 60 | Base Assembly (Red) | 1008095 | £82.93 | No | |
| 61 | Shell Holder - 10 Gauge | 10071510 | £16.20 | Yes | |
| 61 | Shell Holder - 12 Gauge | 10071512 | £16.20 | Yes | |
| 61 | Shell Holder - 16 Gauge | 10071516 | £16.20 | Yes | |
| 61 | Shell Holder - 20 Gauge | 10071520 | £16.20 | Yes | |
| 61 | Shell Holder - 28 Gauge | 10071528 | £16.20 | Yes | |
| 61 | Shell Holder - 410 Bore | 100715410 | £16.20 | Yes | |
| 62 | Wad Guide Spring | 100751D | £3.00 | Yes | |
| 63 | Nut | HDW8476 | £1.82 | No | |
| 64 | Ball Pivot Pin (includes 2 x HDW8476) | 1008419 | £6.54 | Yes | |
| 65 | Spindex Star Crimp - 10 Gauge ( 6 Point) | 100843910 | £12.00 | Yes | |
| 65 | Spindex Star Crimp - 12 Gauge ( 6 Point) | 1008439126 | £12.00 | Yes | |
| 65 | Spindex Star Crimp - 12 Gauge ( 8 Point) | 1008439128 | £12.00 | Yes | |
| 65 | Spindex Star Crimp - 16 Gauge ( 6 Point) | 1008439166 | £12.00 | Yes | |
| 65 | Spindex Star Crimp - 16 Gauge ( 8 Point) | 1008439168 | £6.96 | No | |
| 65 | Spindex Star Crimp - 20 Gauge ( 6 Point) | 1008439206 | £12.00 | Yes | |
| 65 | Spindex Star Crimp - 20 Gauge ( 8 Point) | 1008439208 | £12.00 | No | |
| 65 | Spindex Star Crimp - 28 Gauge ( 6 Point) | 100843928 | £12.00 | Yes | |
| 65 | Spindex Star Crimp - 410 Bore ( 6 Point) | 1008439410 | £12.00 | Yes | |
| 66 | Shell Lifter - 10 Gauge | 100810910 | £13.20 | Yes | |
| 66 | Shell Lifter - 12, 16, 20 Gauge | 100810912 | £13.20 | Yes | |
| 66 | Shell Lifter - 28 Gauge | 100810928 | £12.00 | No | |
| 66 | Shell Lifter - 410 Bore | 1008109410 | £12.00 | Yes | |
| 67 | Actuator Rod (8118) | 1008310 | £13.14 | No | |
| 68 | Roll Pin | HDW7455 | £1.21 | No | |
| 69 | Column | 1008093 | £40.11 | No | |
| 70 | Cam Roller Kit | 1008735 | £7.80 | No | |
| 71 | Column Spring | 100612 | £4.44 | No | |
| 72 | Primer Seating Pad | 100331 | £3.84 | Yes | |
| 73 | Primer Seating Spring | 100330 | £3.00 | No | |
| 74 | Primer Cup | 100326 | £14.64 | Yes | |
| 74 | Complete Primer Seat Assembly (Spring, Pad, Cup) | 100325CP | £20.34 | Yes | |
| 75 | Spacer (3 inch) | 1008111 | £2.32 | No | |
| 76 | Column Bolt | HDW8024 | £1.48 | Yes | |
| 77 | Wad Guide Bracket | 1008313 | £9.24 | Yes | |
| 78 | Nut | 1008017 | £3.27 | No | |
| 79 | Mounting Bolt | HDW313C | £1.03 | Yes | |
| 80 | Retaining Ring | 1008023 | £1.21 | No | |
| 81 | Pivot Pin | 1008022 | £2.16 | Yes | |
| 82 | Return Bracket | 1008608 | £38.64 | No | |
| 83 | Chain Link With Keeper | 1008032 | £5.40 | Yes | |
| 84 | Collet Closure | 1008106 | £36.54 | Yes | |
| 85 | Turret Assembly | 1008097 | £47.65 | No |
