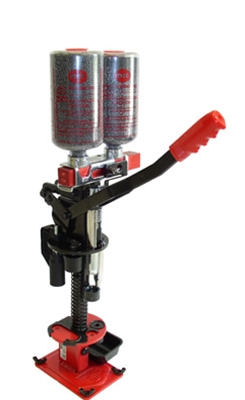

MEC 600 JR MARK 5 PARTS
 |
Shop Products
| Article | Code | Price | Stock | ||
|---|---|---|---|---|---|
| Support Tube - 3in | 1008317 | £14.64 | Yes | ||
| Support Tube - 3 1/2in | 1008318 | £14.64 | Yes | ||
| 1 | Cap Plug | 10013X | £1.06 | No | |
| 2 | Drop Tube (10, 12, 16 Gauge) | 100205 | £2.40 | Yes | |
| 2 | Drop Tube (20, 28, 410) | 10020528 | £2.40 | Yes | |
| 3 | Small Container With Cap | 100301L13X | £16.50 | Yes | |
| 5 | Charge Bar Rubber Insert | 1008440 | £3.12 | Yes | |
| 6 | Measure Only | 1008098CA | £22.50 | No | |
| 7 | Bottle Cap | 100304C | £1.62 | Yes | |
| 8 | Grommet (1 Per Pack) | 100304G | £4.80 | Yes | |
| 8 | Brass Washer (1 Per Pack) | 100304W | £5.00 | Yes | |
| 9 | Nut | HDW304J | £1.98 | Yes | |
| 10 | Pressure Indicator Face | 100306F | £4.95 | No | |
| 11 | Pointer | 100306P | £3.83 | No | |
| 12 | Pressure Spring | 100306T | £4.91 | Yes | |
| 13 | Stop Nut (14 / 20) | HDW309E | £1.03 | No | |
| 14 | Column Bolt | HDW8024 | £1.48 | Yes | |
| 15 | Mounting Bolt | HDW313C | £1.03 | Yes | |
| 16 | Primer Cup | 100326 | £14.64 | Yes | |
| 17 | Primer Seating Spring | 100330 | £3.00 | No | |
| 18 | Primer Seating Pad | 100331 | £3.84 | Yes | |
| 18 | Complete Primer Seat Assembly (Spring, Pad, Cup) | 100325CP | £20.34 | Yes | |
| 19 | Primer Catcher | 100351 | £6.12 | Yes | |
| 20 | Resize Ring - 10 Gauge | 10043510 | £14.10 | Yes | |
| 20 | Resize Ring - 12 Gauge | 100846512 | £14.10 | Yes | |
| 20 | Resize Ring - 16 Gauge | 100846516 | £14.10 | Yes | |
| 20 | Resize Ring - 20 Gauge | 100846520 | £14.10 | Yes | |
| 20 | Resize Ring - 28 Gauge | 100846528 | £14.10 | Yes | |
| 20 | Resize Ring - 410 Bore | 1008465410 | £14.10 | Yes | |
| 21 | Lock Ring | 100435A | £4.91 | Yes | |
| 22 | Wad Guide Fingers - 10 Gauge | 100830010 | £7.50 | Yes | |
| 22 | Wad Guide Fingers - 12 Gauge | 100830012 | £7.50 | Yes | |
| 22 | Wad Guide Fingers - 16 Gauge | 100830016 | £7.50 | Yes | |
| 22 | Wad Guide Fingers - 20 Gauge | 100830020 | £7.50 | Yes | |
| 22 | Wad Guide Fingers - 28 Gauge | 100830028 | £7.50 | Yes | |
| 22 | Wad Guide Fingers - 410 Bore | 1008300410 | £7.50 | Yes | |
| 23 | Lock Nut | HDW459A | £1.21 | No | |
| 24 | Lock Nut | HDW460A | £1.00 | No | |
| 25 | Lock Nut | HDW461A | £1.00 | No | |
| 26 | Rammer Tube - 10 Gauge | 100505B10 | £16.50 | Yes | |
| 26 | Rammer Tube - 12 Gauge | 100505B12 | £16.50 | Yes | |
| 26 | Rammer Tube - 16 Gauge | 100505B16 | £16.50 | Yes | |
| 26 | Rammer Tube - 20 Gauge | 100505B20 | £16.50 | Yes | |
| 26 | Rammer Tube - 28 Gauge | 100505B28 | £16.50 | Yes | |
| 26 | Rammer Tube - 410 Bore | 100505BF410 | £18.60 | Yes | |
| 27 | Adjusting Clamp | 100507 | £3.83 | Yes | |
| 27 | Adjusting Clamp Screw | HDW507A | £3.83 | Yes | |
| 28 | Self Tapping Screw | HDW8324 | £2.98 | No | |
| 29 | Hex Wrench | 100507B | £1.21 | Yes | |
| 30 | Link Spacer | 100510B | £1.03 | Yes | |
| 31 | Deprime Punch - 10 Gauge | 10071910 | £17.10 | Yes | |
| 31 | Deprime Punch - 12 Gauge | 10051912 | £17.10 | Yes | |
| 31 | Deprime Punch - 16 Gauge | 10051916 | £17.10 | Yes | |
| 31 | Deprime Punch - 20 Gauge | 10051920 | £17.10 | Yes | |
| 31 | Deprime Punch - 28 Gauge | 10051928 | £17.10 | Yes | |
| 31 | Deprime Punch - 410 Bore | 100519410 | £17.10 | Yes | |
| 33 | Links Kit (L & R Hand) | 100610 | £14.24 | Yes | |
| 34 | Link Bolt | HDW610A | £1.66 | Yes | |
| 35 | Handle Bolt | HDW610C | £1.58 | Yes | |
| 36 | Column Spring | 100612 | £4.44 | No | |
| 37 | Cam Roller Pin | 100613D | £0.87 | Yes | |
| 38 | Cam Roller Zytel Die | 1008312 | £1.61 | No | |
| 39 | Washer | HDW623C | £1.66 | Yes | |
| 40 | Bolt | HDW685F | £1.66 | Yes | |
| 41 | Lock Washer | HDW751W | £1.21 | Yes | |
| 42 | MEC Pro Check (inc bolt and washer) | 751E | £10.50 | Yes | |
| 43 | Spindex Star Crimp - 10 Gauge ( 6 Point) | 100843910 | £12.00 | Yes | |
| 43 | Spindex Star Crimp - 12 Gauge ( 6 Point) | 1008439126 | £12.00 | Yes | |
| 43 | Spindex Star Crimp - 12 Gauge ( 8 Point) | 1008439128 | £12.00 | Yes | |
| 43 | Spindex Star Crimp - 16 Gauge ( 6 Point) | 1008439166 | £12.00 | Yes | |
| 43 | Spindex Star Crimp - 20 Gauge ( 6 Point) | 1008439206 | £12.00 | Yes | |
| 43 | Spindex Star Crimp - 20 Gauge ( 8 Point) | 1008439208 | £12.00 | No | |
| 43 | Spindex Star Crimp - 28 Gauge ( 6 Point) | 100843928 | £12.00 | Yes | |
| 43 | Spindex Star Crimp - 410 Bore ( 6 Point) | 1008439410 | £12.00 | Yes | |
| 44 | Ball Pivot Pin (includes 2 x HDW8476) | 1008419 | £6.54 | Yes | |
| 45 | Nut | HDW8476 | £1.82 | No | |
| 47 | Support Tube - 2 3/4in | 1008316 | £14.64 | Yes | |
| 49 | Measure Mounting Bracket | 100704C | £9.21 | Yes | |
| 50 | Measure Pivot Screw | HDW304D | £1.00 | Yes | |
| 51 | Turret Frame Assembly | 1008319 | £43.43 | No | |
| 52 | Handle Assembly | 100709CA | £24.02 | No | |
| 53 | Handle Bolt | HDW709B | £1.82 | Yes | |
| 54 | Handle Grip | 100709C | £3.83 | Yes | |
| 55 | Column | 100711 | £26.01 | No | |
| 56 | Roll Pin | HDW7455 | £1.21 | No | |
| 57 | Base Assembly | 1008448 | £32.55 | No | |
| 58 | Wing Nut | HDW713D | £1.66 | Yes | |
| 59 | Shell Holder - 10 Gauge | 10071510 | £16.20 | Yes | |
| 59 | Shell Holder - 12 Gauge | 10071512 | £16.20 | Yes | |
| 59 | Shell Holder - 16 Gauge | 10071516 | £16.20 | Yes | |
| 59 | Shell Holder - 20 Gauge | 10071520 | £16.20 | Yes | |
| 59 | Shell Holder - 28 Gauge | 10071528 | £16.20 | Yes | |
| 59 | Shell Holder - 410 Bore | 100715410 | £16.20 | Yes | |
| 60 | Reprime Punch - 10 Gauge | 10072010 | £16.38 | Yes | |
| 60 | Reprime Punch - 12 Gauge | 10072012 | £16.38 | Yes | |
| 60 | Reprime Punch - 16 GAUGE | 10072016 | £16.38 | Yes | |
| 60 | Reprime Punch - 20 Gauge | 10072020 | £16.38 | Yes | |
| 60 | Reprime Punch - 28 Gauge | 10072028 | £16.38 | Yes | |
| 60 | Reprime Punch - 410 Bore | 100720410 | £16.38 | Yes | |
| 61 | Screw | HDW634K | £1.06 | No | |
| 62 | Cam Crimp Assembly - 10 Gauge | 100721CA10 | £19.44 | Yes | |
| 62 | Cam Crimp Assembly - 12 Gauge | 100721CA12 | £19.44 | Yes | |
| 62 | Cam Crimp Die Assembly - 16 Gauge | 100721CA16 | £19.44 | Yes | |
| 62 | Cam Crimp Assembly - 20 Gauge | 100721CA20 | £19.44 | Yes | |
| 62 | Cam Crimp Assembly - 28 Gauge | 100721CA28 | £19.44 | Yes | |
| 62 | Cam Crimp Assembly - 410 Bore | 100721CA410 | £19.44 | Yes | |
| 63 | Cam Crimp Punch - 10 Gauge | 100721B10 | £11.40 | Yes | |
| 63 | Cam Crimp Punch - 12 Gauge | 100721B12 | £11.40 | Yes | |
| 63 | Cam Crimp Punch - 16 Gauge | 100721B16 | £11.40 | Yes | |
| 63 | Cam Crimp Punch - 20 Gauge | 100721B20 | £11.40 | Yes | |
| 63 | Cam Crimp Punch - 28 Gauge | 100721B28 | £11.40 | Yes | |
| 63 | Cam Crimp Punch - 410 Bore | 100721B410 | £11.40 | Yes | |
| 64 | Crimp Die Cam | 100723 | £4.78 | Yes | |
| 65 | Washer | HDW609F | £1.21 | Yes | |
| 66 | Wad Guide Bracket | 1008313 | £9.24 | Yes | |
| 67 | Wad Guide Spring | 100751D | £3.00 | Yes | |
| 71 | Knockout Bushing - 10 Gauge | 100832010 | £11.64 | Yes | |
| 71 | Knockout Bushing - 12 Gauge | 100832012 | £11.64 | Yes | |
| 71 | Knockout Bushing - 16 Gauge | 100832016 | £11.64 | Yes | |
| 71 | Knockout Bushing - 20 Gauge | 100832020 | £11.64 | Yes | |
| 71 | Knockout Bushing - 28 Gauge | 100832028 | £11.64 | Yes | |
| 71 | Knockout Bushing - 410 Bore | 1008320410 | £11.64 | Yes | |
| 72 | Eject Bolt | 100760 | £6.54 | Yes | |
| 73 | Eject Cam | 100764 | £4.38 | Yes |
