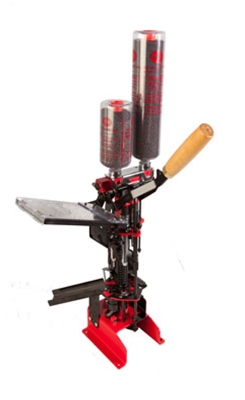

9000 SERIES (MODEL G) PARTS

Shop Products

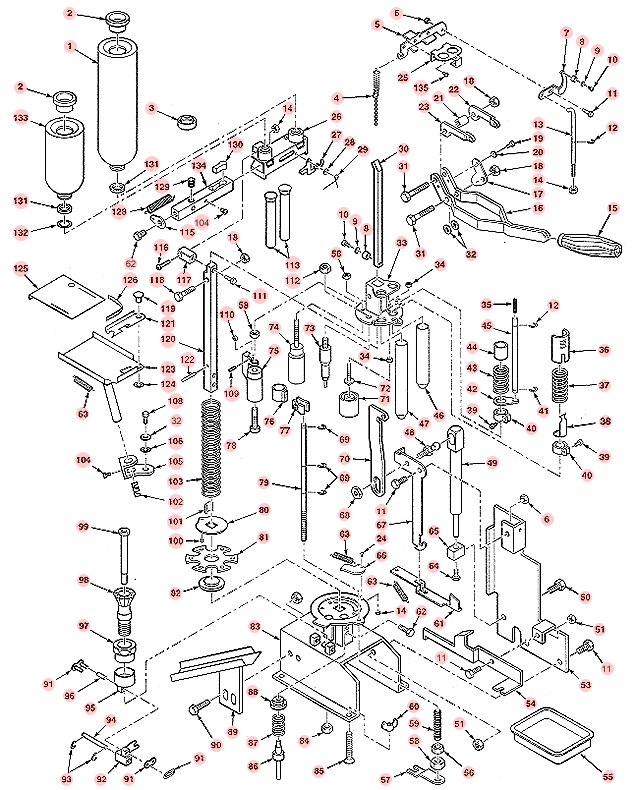

Please Note - This exploded diagram shows the older machine version, that included the smaller metal primer tray (385A3). To replace any parts for the Larger Capacity Primer tray (black bracket and black plastic tray) Please call for advice.

Shop Products

	Article	Code	Price	Stock
	Pivot Bracket Assembly	9258	£50.10	No	add
1	Shot Container (12 inch)	1008042	£19.56	Yes	add
2	Cap Plug	10013X	£1.06	No	add
3	Bottle Cap	100304C	£1.62	Yes	add
4	Spring And Chain	1008276	£7.50	Yes	add
5	Mounting Bracket	1008045	£14.79	No	add
6	Lock Nut	HDW460A	£1.00	No	add
7	Bar Actuator	1008054	£7.92	Yes	add
8	Cam Roller	100623B	£2.77	Yes	add
9	*See Reference Number 10	1008712	£2.05	No	add
10	Cam Roller Kit	1008735	£7.80	Yes	add
11	Screw	HDW570A	£2.80	No	add
12	Retaining Ring (Upper)	100670J	£1.21	No	add
13	Operating Rod	1008055CA	£16.62	Yes	add
14	Nut	HDW304J	£1.98	Yes	add
15	Handle Grip	1008400	£21.54	Yes	add
16	Handle	100609	£21.24	Yes	add
17	Crimp Die Cam	100723	£4.78	Yes	add
18	Stop Nut (14 / 20)	HDW309E	£1.03	No	add
19	Self Tapping Screw	HDW8324	£2.98	No	add
20	Washer	HDW623C	£1.66	Yes	add
21	Link Spacer	100510B	£1.03	Yes	add
22	Links Kit (L & R Hand)	100610	£14.24	Yes	add
23	Links Kit (L & R Hand)	100610	£14.24	Yes	add
24	Screw (12, 16, 20 Gauge)	HDW304L	£1.56	No	add
24	Bolt (28 & 410 Only)	HDW8718	£2.25	No	add
25	Drop Tube Bracket	100670C	£6.18	No	add
26	Measure Assembly	1008075	£34.90	Yes	add
27	Bar Lock	100670A	£4.38	Yes	add
28	Washer	100670G	£1.21	Yes	add
29	Lock Spring	100670B	£2.16	No	add
30	Actuator Rod (8118)	1008310	£13.14	Yes	add
31	Handle Bolt	HDW609B	£2.64	No	add
32	Washer	HDW609F	£1.21	Yes	add
33	Turret Assembly	1008035	£57.17	No	add
34	Nut	HDW8476	£1.82	No	add
35	Trip Spring	100670D	£1.37	No	add
36	Pressure Indicator Face	100306F	£4.95	No	add
37	Pressure Spring	100306T	£4.91	Yes	add
38	Pointer	100306P	£3.83	No	add
39	Adjusting Clamp Screw	HDW507A	£3.83	No	add
40	Adjusting Clamp	100507	£3.83	Yes	add
41	Retaining Ring	100670K	£1.21	Yes	add
42	Trip Rod Bracket	100670E	£2.16	Yes	add
43	Reprime Spring	1008025	£5.97	No	add
44	Spacer	1008344	£2.51	No	add
45	Trip Rod	100670F	£6.96	Yes	add
46	Rammer Tube - 12 Gauge	100505B12	£16.56	Yes	add
46	Rammer Tube - 16 Gauge	100505B16	£16.56	Yes	add
46	Rammer Tube - 20 Gauge	100505B20	£16.56	Yes	add
46	Rammer Tube - 28 Gauge	100505B28	£16.56	Yes	add
46	Rammer Tube - 410 Bore	100505BF410	£18.60	Yes	add
47	Reprime Tube - 12 & 16 Gauge	100505C12	£18.48	Yes	add
47	See 100505C12	100505C16	On Request	No	add
47	Reprime Tube - 20 Gauge	100505C20	£18.48	Yes	add
47	Reprime Tube - 28 Gauge	100505C28	£18.48	Yes	add
47	Reprime Tube - 410 Bore	100505C410	£18.48	Yes	add
48	Ball Joint	1008678	£3.41	Yes	add
49	Actuator Carrier	1008791	£24.82	Yes	add
50	Bolt	HDW8663	£1.21	No	add
51	Lock Nut	HDW460A	£1.00	No	add
53	Side Plate	1008653	£27.82	No	add
54	Lower Cam Bracket	1008651	£7.32	No	add
55	Primer Catcher	1008067	£6.12	Yes	add
56	Lock Nut	HDW8649	£1.21	No	add
57	Shell Lifter Bracket	1008563	£2.51	No	add
58	Lock Nut	HDW461A	£1.00	No	add
59	Wad Guide Spring	1008724	£2.32	Yes	add
60	Wing Nut	HDW713D	£1.66	Yes	add
61	Slide Bracket	1008654	£3.83	No	add
62	Column Bolt	HDW8024	£3.12	Yes	add
63	Return Spring	100385Q	£3.00	Yes	add
64	Bolt	HDW8141	£1.21	No	add
65	Adjusting Block	1008670	£8.75	No	add
66	Carrier Stop	1008681	£2.48	No	add
66	Shell Retainer (28 Gauge)	1008739	£7.33	No	add
66	Shell Retainer (410 Bore)	1008716	£4.12	No	add
67	Upper Cam Bracket	1008650	£3.66	No	add
68	Eccentric Nut	1008671	£5.10	Yes	add
69	Retaining Ring	100616A	£1.21	No	add
70	Actuating Bracket	1008669	£2.30	No	add
71	Spindex Star Crimp - 12 Gauge ( 6 Point)	1008439126	£12.00	Yes	add
71	Spindex Star Crimp - 12 Gauge ( 8 Point)	1008439128	£12.00	Yes	add
71	Spindex Star Crimp - 12 Gauge ( Smooth)	100843912S	£6.00	No	add
71	Spindex Star Crimp - 16 Gauge ( 6 Point)	1008439166	£12.00	Yes	add
71	Spindex Star Crimp - 16 Gauge ( 8 Point)	1008439168	£6.96	No	add
71	Spindex Star Crimp - 20 Gauge ( 6 Point)	1008439206	£12.00	Yes	add
71	Spindex Star Crimp - 20 Gauge ( 8 Point)	1008439208	£12.00	No	add
71	Spindex Star Crimp - 28 Gauge ( 6 Point)	100843928	£12.00	Yes	add
71	Spindex Star Crimp - 410 Bore ( 6 Point)	1008439410	£12.00	Yes	add
72	Ball Pivot Pin (includes 2 x HDW8476)	1008419	£6.54	Yes	add
73	Deprime Punch - 12 Gauge	100810712	£19.62	Yes	add
73	Deprime Punch - 16 Gauge	100810716	£19.62	Yes	add
73	Deprime Punch - 20 Gauge	100810720	£19.62	Yes	add
73	Deprime Punch - 28 Gauge	100810728	£19.62	Yes	add
73	Deprime Punch - 410 Bore	1008107410	£19.62	Yes	add
74	Finish Die - 12 Gauge	10052212P	£19.32	Yes	add
74	Finish Die - 16 Gauge	10052216P	£19.32	No	add
74	Finish Die - 20 Gauge	10052220P	£19.32	Yes	add
74	Finish Die - 28 Gauge	10052228P	£19.32	Yes	add
74	Finish Die - 410 Bore	100522410P	£19.32	Yes	add
75	Cam Crimp Assembly - 12 Gauge	100721CA12	£19.44	Yes	add
75	Cam Crimp Die Assembly - 16 Gauge	100721CA16	£19.44	Yes	add
75	Cam Crimp Assembly - 20 Gauge	100721CA20	£19.44	Yes	add
75	Cam Crimp Assembly - 28 Gauge	100721CA28	£19.44	Yes	add
75	Cam Crimp Assembly - 410 Bore	100721CA410	£19.44	Yes	add
76	Wad Guide Fingers - 12 Gauge	100830012	£7.50	Yes	add
76	Wad Guide Fingers - 16 Gauge	100830016	£7.50	Yes	add
76	Wad Guide Fingers - 20 Gauge	100830020	£7.50	Yes	add
76	Wad Guide Fingers - 28 Gauge	100830028	£7.50	Yes	add
76	Wad Guide Fingers - 410 Bore	1008300410	£7.50	Yes	add
77	Wad Guide Clip Assembly	1008377	£6.84	Yes	add
78	Cam Crimp Punch - 12 Gauge	100721B12	£11.40	Yes	add
78	Cam Crimp Punch - 16 Gauge	100721B16	£11.40	Yes	add
78	Cam Crimp Punch - 20 Gauge	100721B20	£11.40	Yes	add
78	Cam Crimp Punch - 28 Gauge	100721B28	£11.40	Yes	add
78	Cam Crimp Punch - 410 Bore	100721B410	£11.40	Yes	add
79	Wad Guide Rod - 12 Gauge	100856112	£26.40	Yes	add
79	Wad Guide Rod - 16 Gauge	100800716	£26.40	No	add
79	Wad Guide Rod - 20 Gauge	100856120	£26.40	Yes	add
79	Wad Guide Rod - 28 Gauge	100856128	£26.40	Yes	add
79	Wad Guide Rod - 410 Bore	1008561410	£26.40	Yes	add
80	Carrier Hold Down	100615B	£7.05	Yes	add
81	Carrier - 12 Gauge	10061512	£22.14	No	add
81	Carrier - 16 Gauge	10061516	£22.14	Yes	add
81	Carrier - 20 Gauge	10061520	£22.14	Yes	add
81	Carrier - 28 Gauge	10061528	£22.14	Yes	add
81	Carrier - 410 Bore	100615410	£22.14	Yes	add
82	Carrier Bushing	1008112	£5.46	Yes	add
83	Base Assembly - 12 Gauge	100867612	£65.00	No	add
83	Base Assembly - 16 GAUGE	100867616	£65.00	No	add
83	Base Assembly - 20 Gauge	100867620	£65.00	No	add
83	Base Assembly - 28 Gauge	100867628	£65.00	No	add
83	Base Assembly - 410 Bore	1008676410	£65.00	No	add
84	Nut	1008017	£3.27	No	add
85	Mounting Bolt	HDW313C	£1.03	Yes	add
87	Spring	100630	£3.83	Yes	add
88	12 Gauge Spring Pad	10053112	£5.62	Yes	add
88	Primer Seat Assembly (Post,Spring,Pad) 12GA or 20GA	100525CA20/12	£14.40	No	add
89	Chute Assembly	1008666	£11.88	Yes	add
90	Bolt	HDW8662	£1.21	No	add
91	Chain Link With Keeper	1008032	£5.40	Yes	add
92	Return Bracket	1008608	£38.64	Yes	add
93	Retaining Ring	1008023	£1.21	No	add
94	Pivot Pin	1008022	£2.16	No	add
95	Closure (Bottom)	1008491	£19.27	Yes	add
96	*See Reference Number 110	1008113	£4.91	Yes	add
97	Collet Closure Assembly	1008018HB	£31.20	No	add
98	Collet - 12 Gauge	100808012	£64.50	Yes	add
98	Collet - 16 Gauge	100808016	£64.50	Yes	add
98	Collet - 20 Gauge	100808020	£64.50	Yes	add
98	Collet - 28 Gauge	100808028	£64.50	Yes	add
98	Collet - 410 Bore	1008080410	£64.50	Yes	add
99	Shell Lifter - 12 Gauge	100856012	£17.70	Yes	add
99	Shell Lifter - 16 Gauge	100856016	£17.70	Yes	add
99	Shell Lifter - 20 Gauge	100856020	£17.70	Yes	add
99	Shell Lifter - 28 Gauge	100856028	£17.70	Yes	add
99	Shell Lifter - 410 Bore	1008560410	£17.70	Yes	add
100	Index Ball	100515D	£1.86	Yes	add
101	Index Spring	100615C	£2.77	Yes	add
102	Retaining Clip	100385E	£1.64	Yes	add
103	Column Spring	100612	£4.44	No	add
104	Screw	HDW303	£1.64	No	add
105	Tube Clamp Kit	100385CE	£13.04	Yes	add
106	Lock Washer	HDW685H	£1.21	No	add
108	Bolt	HDW685F	£1.66	Yes	add
109	Cam Roller Pin	100613D	£0.87	Yes	add
110	Cam Roller (28 Gauge)	1008699	£1.01	No	add
110	Cam Roller (20 Gauge)	1008768	£0.53	No	add
111	Pivot Block Screw	HDW504D	£1.08	No	add
112	Lock Nut	HDW459A	£1.21	No	add
115	Spring Anchor	100572	£1.48	No	add
116	Measure Pivot Screw	HDW304D	£1.50	Yes	add
117	Block Measure Attachment	100504C	£4.72	No	add
118	Link Bolt	HDW610A	£1.66	Yes	add
119	Rivet	100314A	£1.56	No	add
120	Column	1008010	£46.19	No	add
121	Pick-Up Arm	100285G	£9.48	Yes	add
122	Hold Down Pin	1008348	£0.90	No	add
123	Tray Assembly	100385A3	£48.00	Yes	add
124	Retaining Ring	100285H	£1.56	Yes	add
125	Primer Tray Cover	100285ML	£7.32	Yes	add
126	Primer Feed Spring	100285P	£4.08	Yes	add
128	Bar Return Spring	100573	£3.00	Yes	add
130	Charge Bar Rubber Insert	1008440	£3.84	Yes	add
131	Grommet (1 Per Pack)	100304G	£4.80	Yes	add
132	Brass Washer (1 Per Pack)	100304W	£5.00	Yes	add
133	Small Container With Cap	100301L13X	£16.50	Yes	add
